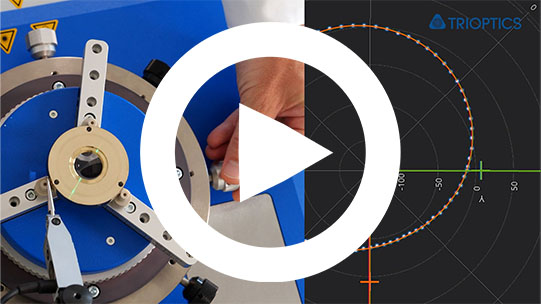

Cell alignment using an alignment table supported by polar plot representation
Manual lens barrel alignment
made easy
Centration testing usually uses a mechanical reference such as the lens barrel axis as reference. In these cases, alignment of the barrel to the axis of rotation of the inspection system is critical. Watch this video to learn how to do this easily using OptiCentric® 9 software.
Fast manual lens centration testing and alignment

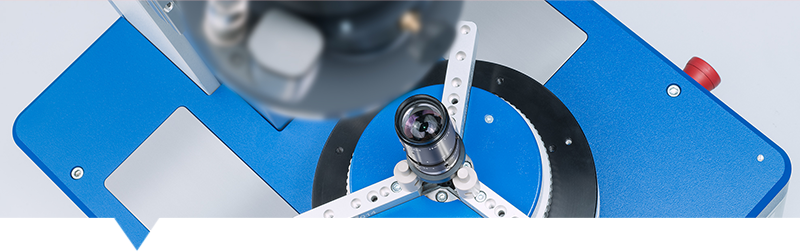

OptiCentric® Compact
––––––
The OptiCentric® Compact is particularly suitable for measurement of single lenses and manual alignment of lens systems. These tasks are quickly mastered thanks to the intuitive setup. The precise measurement with an accuracy of 0.1 µm forms the basis for manual alignment.
Nicole Hesse is responsible for TRIOPTICS' OptiCentric® product as Team Leader Sales for Measurement and Process Technology for Optics Manufacturing (MPO). With her background as an industrial engineer (M.Sc.) she is responsible for the global market and supports our local partners. She pays special attention to finding the optimal solution for her customers.
