Subject: Highest flexibility for complex prisms: PrismMaster® Flex 2D

September 7, 2022

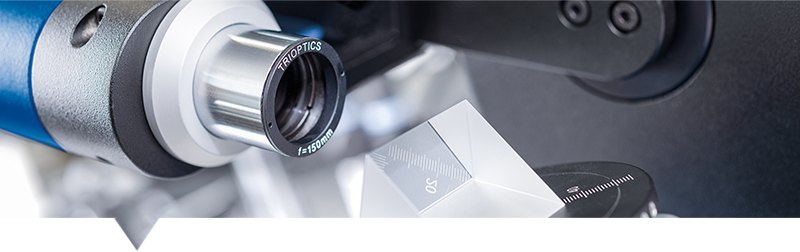

PrismMaster^® Flex 2D

Highest flexibility for complex prisms

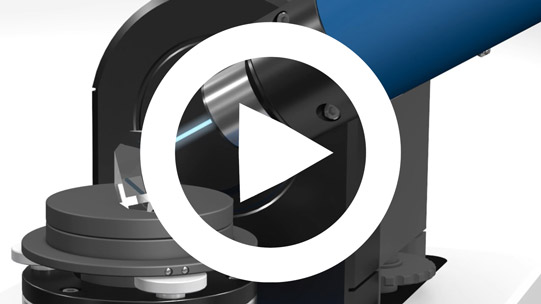

In the highest configuration level of the PrismMaster^® Flex any prism geometry can be measured without an additional sample holder: be it the classic angle measurement between two prism surfaces perpendicular to the rotary table or any complex prism geometry. This is true as the PrismMaster^® Flex 2D can measure both, the position of the swivelling autocollimator and the rotation of the sample rotary table.

PrismMaster^®Flex

Highly flexible goniometer

––––––

With its modular product concept, the PrismMaster^® Flex is a versatile goniometer for simple quality control of prisms and plano optics in optics manufacturing. It is available in three configuration levels and thus meets the requirements for simple comparative measurement through to absolute angle measurement of complex prism geometries.

More information

Contact

Our sales engineer

Dennis Kiel

––––––

Dennis Kiel has several years of experience in technical sales. At TRIOPTCS in Wedel, he is responsible for various products for optical angle measurement, such as OptiTest^®, TriAngle, PrismMaster^®, SpectroMaster^®, as well as spherometers and the alignment turning station ATS.
