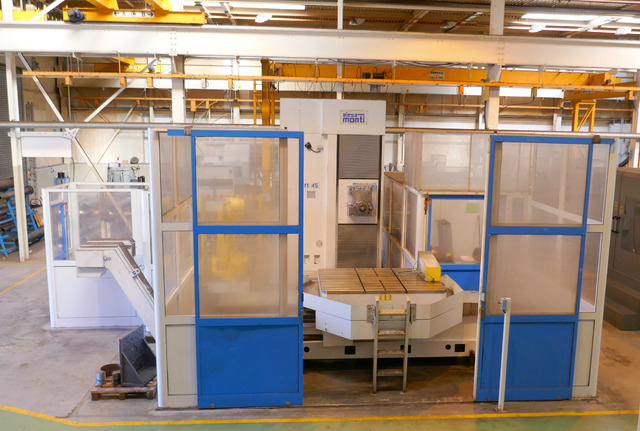

Subject: CNC Horizontal Boring & Milling Machine

View this email online if it doesn't display correctly
New England Llp
Your Home For Industrial & Commercial Online Sales

For Sale by Private Treaty

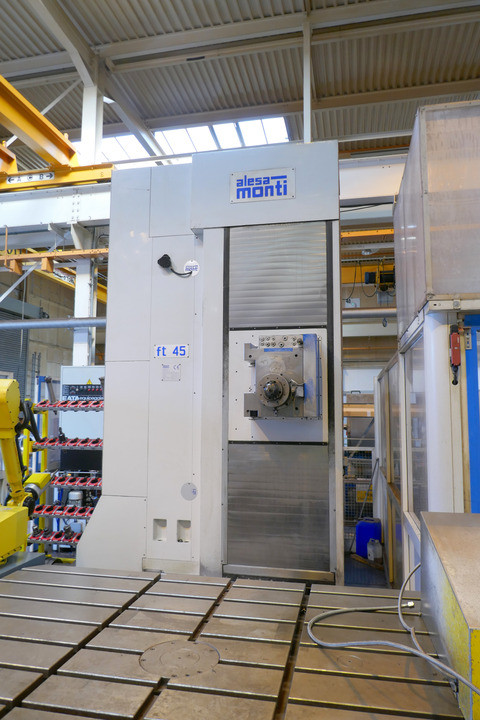

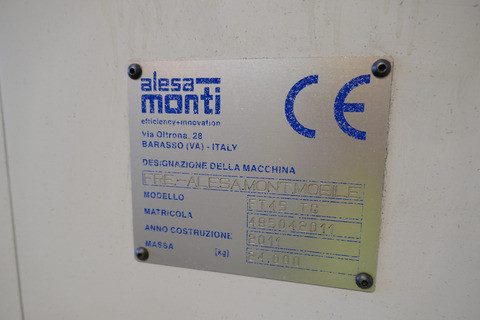

Alesa Monti
Model FT 45 TG
Year 2011

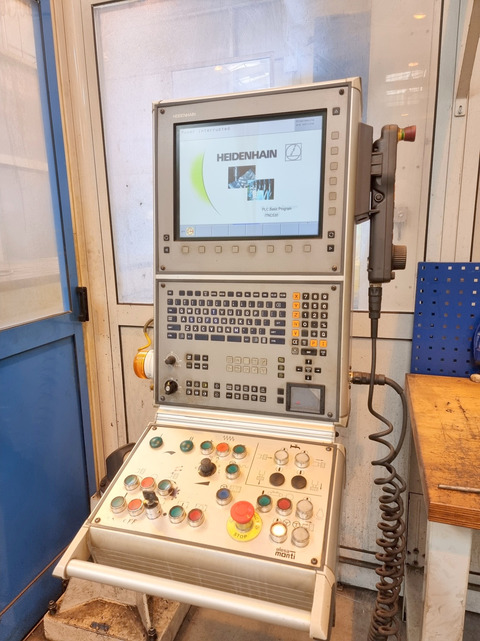

Control system HEIDENHAIN iTNC530
X axis 2000mm Cross travel of table.
Y axis 1500mm Vertical travel of head.
Z axis 1200mm Longitudinal travel of column.
W axis 800mm Longitudinal travel of ram.

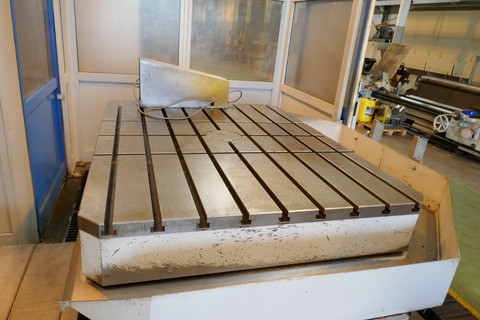

ROTARY TABLE
Size 1300 x 1700mm
Load 6,000kg
B axis 0.001 degree
Working rotation 0.1 – 2 rpm

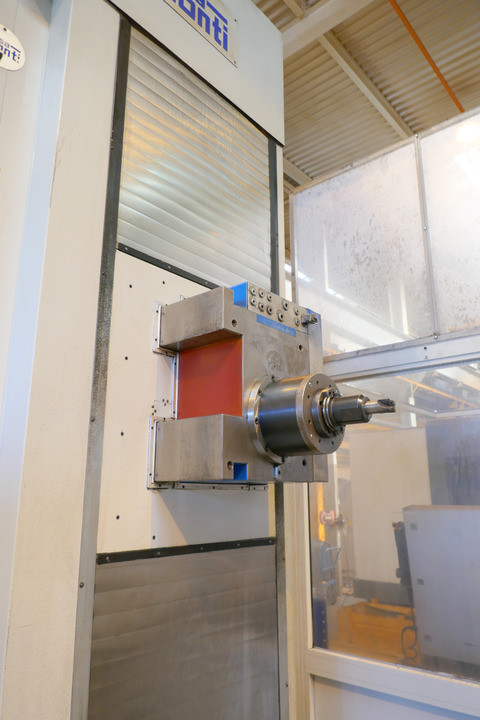

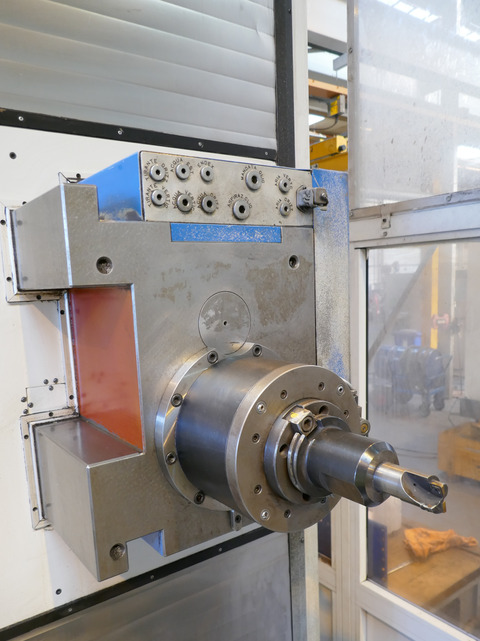

SPINDLE
Taper ISO DIN 50
Speeds 0 - 4000 rpm 2 range
Motor 26 kW
Milling spindle Dia. 128.57mm
FEEDS
X, Y, Z, W 0 – 15,000 mm/min
Rapid 20,000 mm/min

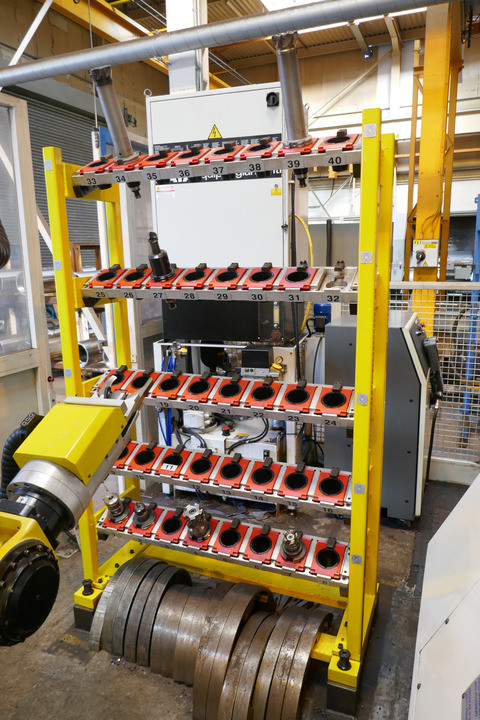

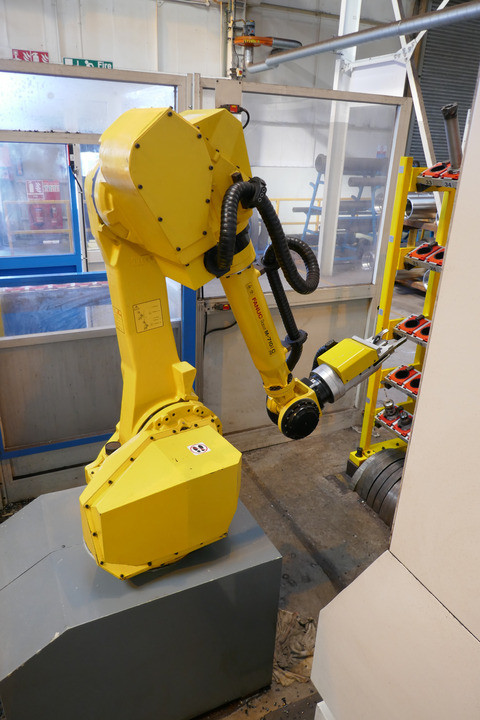

FANUC Robotized tool changer.
Number 40
Max. weight 30 kg
Weight 26,000 kg
Complete with :-
20 bar through spindle coolant
Renishaw touch probe
Chip conveyor

 Can be seen running by appointment
tom@newengland.co.uk
0044(0)7836 583457
