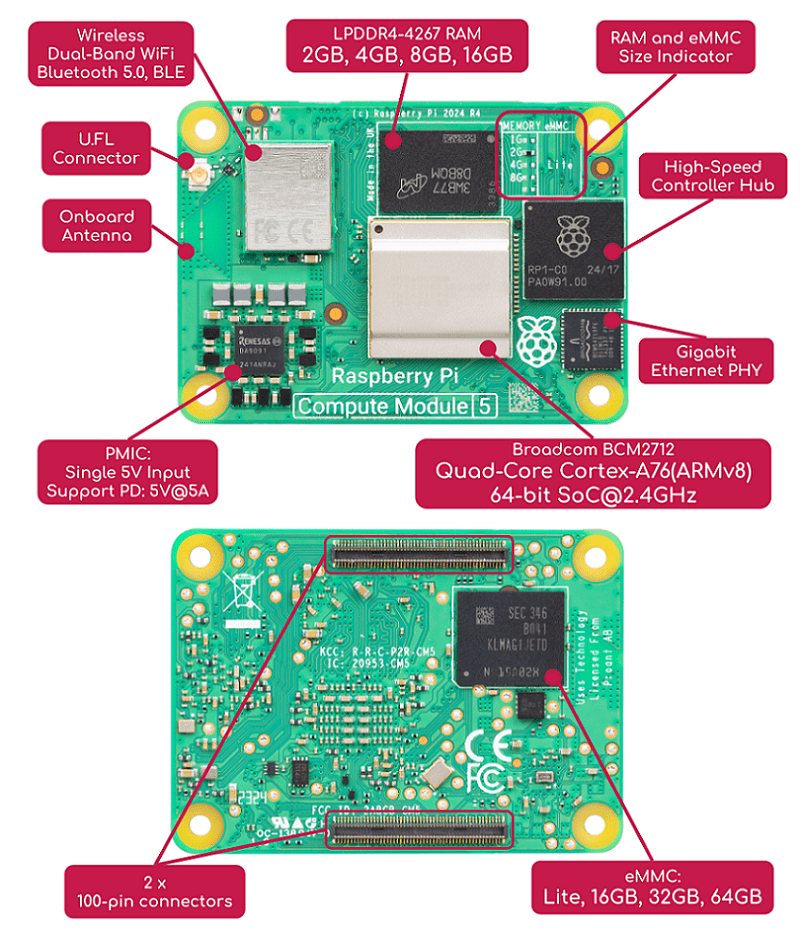

Detailed Specifications of Compute Module 5:

• Processor:
  Broadcom BCM2712, more powerful with 4 ARM Cortex-A76 cores running at 2.4 GHz.

• Memory:

  • RAM:  2GB, 4GB, 8GB, to 16GB LPDDR4X.

  • eMMC: 8GB to 64GB

• Connectivity:

  • PCIe Gen 3: Higher speed compared to PCIe Gen 2 on the CM4, supporting modern peripheral devices.

  • USB 3.0: Supports bidirectional 5Gbps.

  • Camera and Display Support: MIPI CSI and DSI connectors compatible with current Raspberry Pi cameras and displays.

• Additional Features:

  • Gigabit Ethernet: Stable network connection with Ethernet PHY chip.

  • Operating Temperature: Designed for industrial environments, ranging from -20°C to 85°C.
